Reactor Assembly
| DESCRIPTION |
MODEL 500 |
MODEL 900
(n/a) |
| Length (L): |
625 mm |
TBA |
| Height (H): |
270 mm |
270 mm |
| Width (W): |
240 mm |
240 mm |
| Spacing (S): |
70 mm |
70 mm |
| Thickness (T): |
110 mm |
110 mm |
| Housing Dia. (D): |
NPS6 |
NPS6 |
| In/Out Dia. (C): |
NPS2 |
NPS2 |
| Approx. Weight: |
12 kg/26 lb |
TBA |
Click on the image for a larger view.
|
| ITEM |
DESCRIPTION |
SPECIFICATION |
| 1 |
NPS6 Housing |
Aluminum |
| 2 |
Baffle(s) |
Aluminum (Removable) |
| 3 |
Spacer Ring(s) |
Aluminum (Removable) |
| 4 |
NPS2 In/Outlet |
Aluminum (Thrd. Coupling) |
| 5 |
Conn. Flange(s) |
Aluminum (Bolted) |
| 6 |
Vent Assembly |
PVC (Threaded/Removable) |
| 7 |
Sleeved Lamp |
UVC (Flanged/Removable) |
| 8 |
Gasket(s) |
Viton FE350 |
| 9 |
Electr. Enclosure |
Aluminum (NEMA 4X) |
| 10 |
Electr. Ballast |
120V-277V / 50Hz-60Hz |
| 11 |
Lamp Cable |
4 Wire / 4-Pin Connector |
| 12 |
Breather/Drain |
Combination Breather/Drain |
| 13 |
TwistLok |
UVC Lamp Fastener |
| 14 |
Cable & Gland |
Owner Supplied/Installed |
|

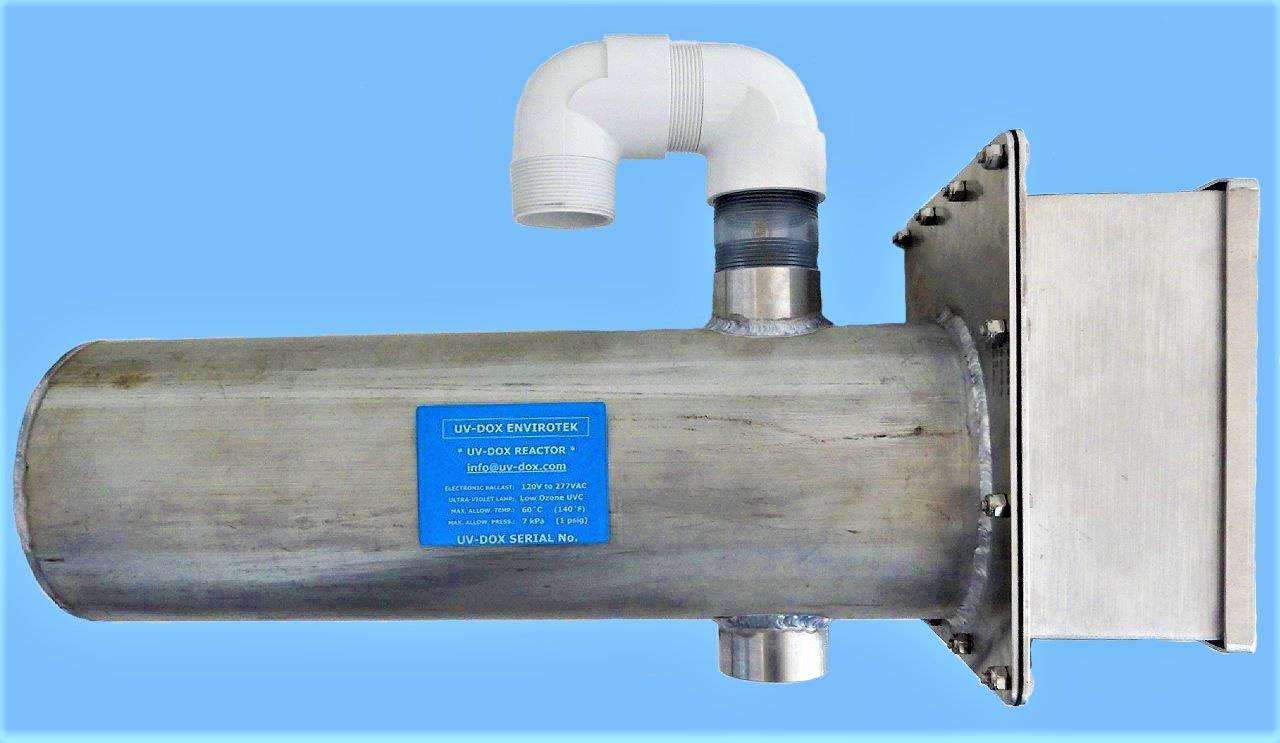

Reactor Side View
|
Reactor End View
|
